本公司拥有多名资深测试开发工程师，可以根据客户的需求开发稳定可靠的自动化测试系统。同时我们还可以为客户提供可测试性产品开发的建议(DFT).
功能测试系统开发及集成
为客户系列产品提供标准化的测试平台
根据不同客户产品的要求提供客户化的解决方案
标准化设备开发
QJTest测试平台，标准化、客户化、人性化的测试界面
目前我们已经为多个客户分别在以下领域开发了测试系统:
通讯类产品
汽车电子
工业控制类　　　　案例：
消费电子类
..........
GSM Mobile Phone Test System
WLAN(802.11a/b/g)
DECT Phone Test System
MP3 Test System
UPS Power Supply Test System
Bluetooth solution
Safety and Alarm products
..........
软件开发能力:

LabVIEW
Labwindows/CVI
TestStand
Agilent VEE
C++/MFC
Script: TCL,Python
Database: SQL, SQL Server, Oracle
......
硬件开发能力:
各种Interface板
Analog Circuit Design
Digital Circuit Design
........


案例介绍：

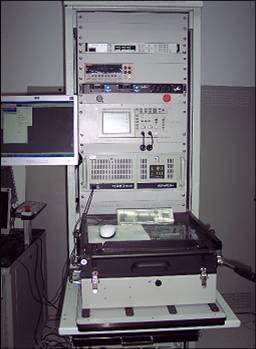

一、UPS product Test System Platform: This platform can be used to test 15 different boards(I/O,Powered and Control board) for UPS product. VPC interface is stable and easy to change the fixture Test Equipment list : AC Power supply: Chroma 61702 Hi-pot tester: Chroma 19052 DC Power supply: Agilent N6700 DMM: Keithley 2000 Oscilloscope: Tektronix TDS1012 DC Load: Chroma 63030 DIO Card: NI PCI 6059 DSP Programming adapter PLD Programming adapte Test Item : Hi Voltage test Leakage current test Digital & Analog input test Automatic Programming and software test overload test
二、 Industry Control product Test System Platform: This platform can be used to test 60 different boards(high,low,AC and DC board) for Industry Control and Switching product. Developed for Multi products to save cost Test Equipment list : AC Power supply:Chroma 61601 Hi-pot tester: Chroma 9012 DC Power supply:Chroma 626006P DMM: 34401A Oscilloscope: Tektronix TDS2012 Functional Generator: 33220A DIO Card: NI PCI 6059 GPIB load box Test Item : Hi Voltage test Leakage current test DC & AC input test Swich On/Off test singal response test
三、 Satety and Alarm product Test System Platform: This platform can be used to test 5 different boards(Power,Control&receive,alarm,capacitor...) for safety and alarm product. Developed for Multi products and high end and low end products to save cost Test Equipment list : AC Power supply: Chroma 61601 DC Power supply: Agilent 3644A DMM: 34401A Oscilloscope: Tektronix TDS2012 Functional Generator: 33220A DIO Card: NI PCI 6059 GPIB load box Test Item : Hi Voltage test Leakage current test DC & AC input test Swich On/Off test singal response test
